C-234 | PRIER's Original Design

PRIER C-234 provides a year round source of water in areas that are subject to freezing temperatures. The hydrant valve is connected to the supply piping in the heated portion of the structure, eliminating the possibility of freezing. Ordering the C-234 gives you the same style hydrant but with a vandal proof extended lockshield and operating key.

The PRIER C-234 is the original freezeless hydrant that is made in the same heavy pattern fashion that made it famous. It is available from stock in lengths from close coupled to 24”. Longer sizes are available upon request.

Check out this design with a full-turn handle - the C-134.

Features

Wide and enclosed screw holes easily secure mounting screws
Integral cast flange with built-in drainage pitch
Solid brass body, valve stem cap, seat and stem ends
Satin nickel plated body maintains attractive finish
Stainless steel screws
Powder coated cast aluminum handle
Lock shield cap
AFG teflon with graphite packing for easy maintenance
Standard “OO” size seat washer
Each valve air-tested at factory for leak-free quality
Spout aligning mark with manufacturer’s date code

Download Spec Sheet

Installation, Operation & Maintenance Guide

Product Support

PRIER has manufactured the C-134/234 Freezeless Wall Hydrant since 1949. This freezeless hydrant has truly passed the test of time. It is a simple operating product that is fairly simple to repair. Possible Repair Issues for the C-234 Freezeless Wall Hydrant includes:

1. When the water is running, water leaks out from behind the handle

This is a common maintenance occurrence for any packed valve of any brand or manufacture. It is overcome by simply tightening the packing nut with a crescent wrench. This will force the packing tighter around the stem to eliminate leakage.

Occasionally, the packing will need to be replaced if the packing nut has been repeatedly tightened.

The packing kit required for this reapir is part number C-134KT-803.

Click here to watch the video

2. The hydrant drips after shut off

A freezeless wall hydrant shuts off inside the heated portion of the structure therefore, the water inside the hydrant will drain out after shutoff. The shutoff point could be any distance from 4" to 24" inside the structure. This installation should also be pitched to allow the water to easily drain out of the hydrant. The hydrant may drip for up to 60 seconds after shutoff. If the water continues to drip after that time, you most likely need to replace the bibb washer.

To determine which bibb washer your hydrant requires, you need to determine the type of stem in the hydrant. That can be accomplished in a few different manners.

1. Determine the date of installation:

Before 1972, PRIER utilized a 1/4 L beveled bibb washer for freezeless hydrants. The appropriate kit for this item is part number C-135KT-802.

After 1972 PRIER used a OO beveled bibb washer for this style freezeless hydrant. The appropriate kit for this item is part number C-134KT-802.

2. Determine the type of stem inside the freezeless hydrant

In order to distinguish the proper replacement bibb washer, you will need to determine the following:

The length of the stem, from brass tip to brass tip. Do not include the rubber bibb washer in this measurement.
The "A" Dimension as shown on the picture below. This "A" Dimension will either be 1/2" or 9/16". A caliper may be necessary to determine this dimension.
Using the acquired dimensions, determine which bibb washer is required from the chart below:

B, C & D style stems use the 1/4L Beveled Bibb Washer, PRIER part number C-135KT-802.

This bibb washer is a standard "1/4 L" Beveled Bibb Washer, available from your local plumbing wholesaler.

C-135KT-802 Replacement Bibb Washer Kit

E & G style stems require the "OO" Beveled Bibb Washers, PRIER part number C-134KT-802.

The bibb washer used on this item is a standard "OO" Beveled Bibb Washer, available at your local plumbing wholesaler.

C-134KT-802 Replacement Bibb Washer

3. Water is leaking from the hydrant inside my house

Unfortunately, your freezeless hydrant is broken, most likely beyond repair. This happens when the water becomes trapped within the hydrant. The water freezes, expands and ruptures the copper shaft of the hydrant located on the inside the structure. The most common reason for this problem is leaving the garden hose attached during freezing weather, or the hydrant was not installed with the proper drainage pitch.

DO NOT OPERATE THE HYDRANT IF THIS HAS OCCURRED.

Please remove the handle to prevent accidental operation until the problem is repaired by your plumber.

4. The operating key is missing from my hydrant

For any one of numerous reasons, your operating key may be missing. PRIER's operating key is unique to its products - it has one flat side and the rest is rounded. This style key mates perfectly with our stem-end for a snug fit and years of reliable operation.

The required part number is C-108KT-808.

C-108KT-808 Operating Key

5. How do I convert my hydrant to handle design?

PRIER freezeless hydrants and angle sill faucets can be converted after installation from loose key operated to handle operation.

To convert to the handle option, part number C-234KT-804 is required.

C-234KT-804 Loose Key to Handle Kit

5. The stem end is damaged and I cannot operate the freezeless hydrant

Occasionally the stem of the PRIER hydrant gets damaged beyond repair. This is most commonly caused by the hydrant being operated by pliers and damage to the brass on the end.

To determine the proper replacement stem, you need to determine the following:

1. Overall length (OAL) of the stem, from tip to brass tip. Do not include the rubber bibb washer in this measurement.

2. The "A" Dimension as shown on the picture below. This "A" Dimension will either be 1/2" or 9/16". A caliper may be necessary to determine this dimension.

3. Using the acquired dimensions, determine which stem is required from the chart below:

6. I need a complete rebuild kit

The complete repair kit for the PRIER C-134/234 Freezeless Wall Hydrant is part number C-134KT-807. It contains all wearing parts for the item.

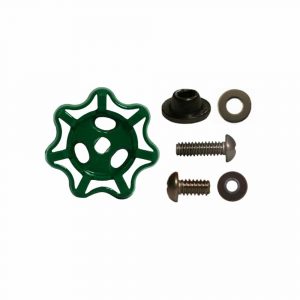

C-134KT-807 Complete Rebuild Kit for C-134/234
